SeaChanger™ Tungsten

The SeaChanger™ Tungsten product line turns your ETC Source Four® into a brilliant, dichroic color changing light fixture. SeaChanger provides quiet and seamless color transitions for theatrical, worship, and architectural applications; the optics are designed to accept any ETC Source Four® front-end assembly, including Zooms and Enhanced Definition barrels. Seachanger™ can reduce the total carbon footprint by replacing banks of gel fixtures with a single unit. Snap to a color in 0.5 seconds with the Speedster color engine option, or enjoy fanless, quiet 1.2 second fades with the standard Legacy color engine. The versatile Tungsten line can also be configured with: CYM color wheels, the xG multi band wheel, a dimmer, or a multitude of custom color wheels.

Specifications
Ambient Temperature:

113°F (45°C) maximum
32°F (0°C) minimum

Electrical:

110/240 VAC, 50/60 Hz, (autosensing),
non-dimmed circuit,
0.3 Amps @ 110 VAC, 0.15 @ 240 VAC (35w)



Legacy color engine is convection cooled, optional Speedster color engine includes 22 dB cooling fan
Control:

DMX512 5-pin male and female XLR;
RDM device per ANSI E1.20-2006;
Front panel membrane keypad with LED numeric display

Filter/Channel Features:

Ch. 1 - Cyan, 0-95% saturation
Ch. 2 - Magenta, 0-95% saturation
Ch. 3 - Yellow, 0-95% saturation
Ch. 4 - Standard xG filter, 0-100% saturation
- Optional patterned AI douser, 0-99% dimming
- Optional custom dichroic filter
- Optional Studio dichroic filter

Color Mapping: Nearly infinite color mapping within a gamut of the CIE triangulated color space; gamut extended with xG filter
Speed: Color changes in less than .5 seconds with Speedster color engine option, 1.2 seconds with the Legacy color engine
Beam Characteristics: Preserves all ETC Source Four ® beam characteristics
Lamp Compatibility: 575W or 750W HPL lamps; can be used with Source Four HID fixtures
White Light Output: 9500 Lumens total system output (SeaChanger +26° Source Four with 750W HPL Lamp
Color Filters:Dichroic patterned CYM and xG coatings on optical glass substrates, BBAR-coated, in-band transmission >98%
Color Temperature: 3200°K
Maintenance: Easy-out color engine removal for cleaning; safety cable ring; 3' safety cable included

Does not include ETC Source Four® components or yoke

Download PDF

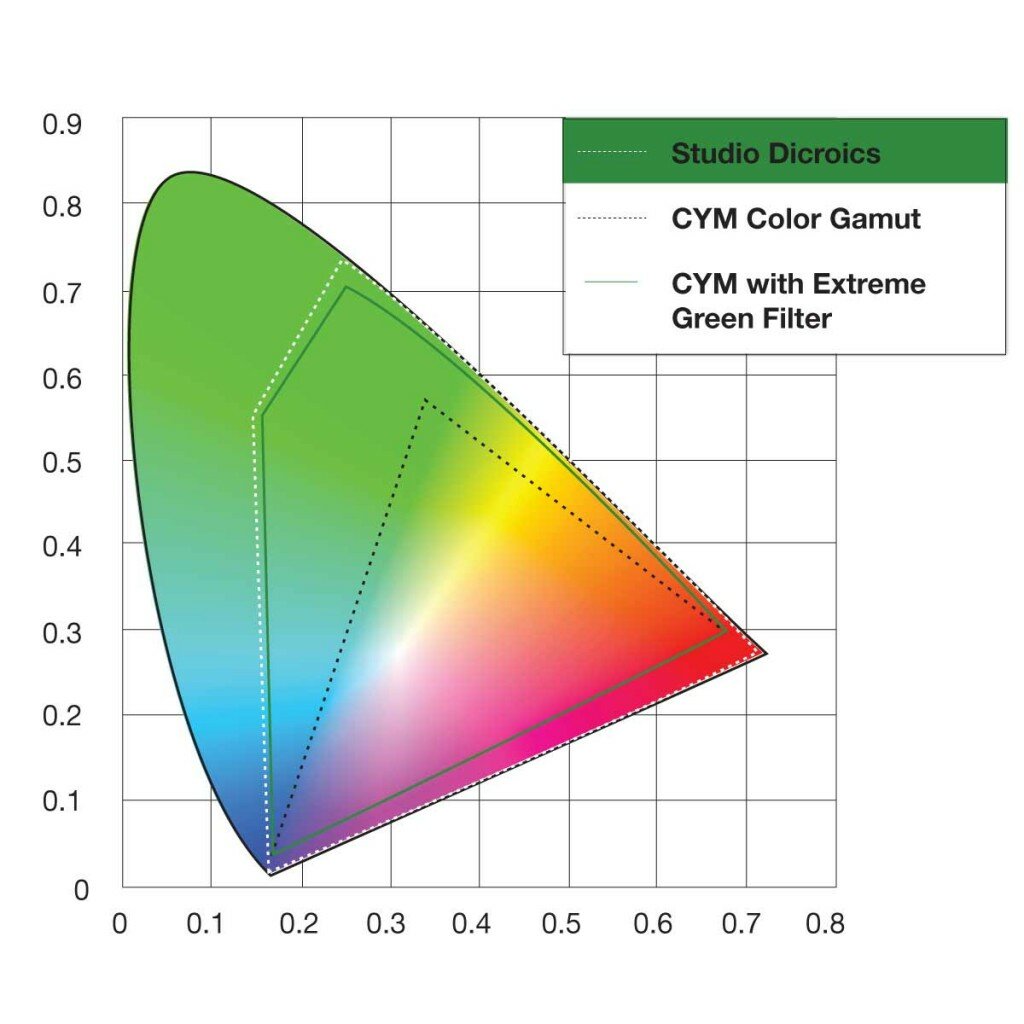

Color Gamut

SeaChanger Tungsten products are dynamic CYMxG color changers used with your ETC Source Four® Ellipsoidals. They utilize dichroic filter technology, creating a nearly endless palette of stable, reproducible colors that don’t shift or fade with time. The SeaChanger™ Tungsten Profile accommodates beam-shaping ETC Source Four® accessories including any FOV barrel (5°, 10°, 14°, 19°, 26°, 36°, 50°, 70° and 90°), Enhanced Definition Lens Tubes (EDLT), Source Four® Zooms and gobos.

Quiet, swipe-free color transitions in less than a half a second are easily accomplished using DMX or RDM control. The xG filter extends the CYM color gamut, and creates deep blues, rich reds and vibrant greens; the xG filter adds natural overtones and nuance to the standard CYM palette, creating a new dimension in realistic scenery lighting.
