NEW! SeaChanger™ Prodigy

Experience color in a whole new light.

White LED Color Mixing The new Prodigy color engine from SeaChanger™ is specifically engineered to provide color mixing for fixtures using a white LED light source. Prodigy gives users the same high color rendering and extensive palette achieved with traditional tungsten fixtures, while incorporating the energy efficiency of compatible LED technology. The new Prodigy also features a slimmer housing design and silent, fan-free operation with color changes in less than 0.3 seconds.

SeaChanger™ Prodigy is compatible with ETC Source 4WRD™ white LED light source
Specifications

Ambient Temperature:

45°C (113°F) Maximum
0°C (32°F) Minimum
75°C (167°F) Maximum exterior

Electrical:

90/240VAC, 50/60 Hz, (auto-sensing),
non-dimming; ETL listed; CE marked
Connections: Neutrik® PowerCON® In and dimming connectors

Legacy Mode: (4 Ch.)

Input: 0.3 Amps @ 110 VAC; 0.15 @ 240VAC (35W Max)

Prodigy Mode: (5 Ch. dimming)

Input: 2.2 Amps @ 110 VAC; 1.1 Amps @ 240VAC (240W Max)
Output: 200W Max

Control:

DMX or stand-alone
5-pin XLR DMX-In and DMX-Thru
4 Ch. Legacy Mode, 5 Ch. Prodigy Mode (LED dimming)
RDM device per ANSI E1.20-2006
Front panel membrane alpha-numeric with LCD display

DMX Channel Set Specification:

Ch. 1 - Cyan: 0-100% saturation
Ch. 2 - Magenta: 0-100% saturation
Ch. 3 - Yellow: 0-100% saturation
Ch. 4 - Expanded gamut (xG): 0-100% saturation
Ch. 5 - LED dimming (Prodigy Mode)

Color Filters:

Patented patterned dichroic CYM and xG coatings on optical glass substrates; broad band anti-reflective coated; transmission >98%

Color Mapping:

Nearly infinite color mapping with a gamut of the CIE triangulated color space
Gamut extended with the xG filter

Speed:

New color engine technology
Color changes in less than 0.3 seconds

Beam Characteristics:

Preserves all ETC Source Four® beam characteristics

Lamp Compatibility:

Compatible with manufacturers’ 3200K retrofit LED solutions for ETC Source Four®

White Light Output:

7500 lumen total system output
(SeaChanger™ Prodigy +26° Source Four® with 200W LED source)

Maintenance:

Easy-out color engine removal for cleaning; safety cable ring; 3’ safety cable included

Does not include ETC Source Four® components or yoke

*Source 4WRD and Source Four are registered trademarks of Electronic Theatre Controls. No affiliation, endorsement or sponsorship is stated or implied.

Download PDF

Sustainability

The SeaChanger™ Prodigy derives color from dichroic color wheels, not the light source. These CYMxG wheels are patterned to produce millions of colors and their non-absorbent filters reflect heat, making them inert to temperature damage and resistant to fading. Using the white LED and SeaChanger™ combination, the white LEDs are designed to be replaceable like a common theatrical lamp, thus making Prodigy a more sustainable solution as there is no need to replace the entire LED fixture.

Unique LED Dimming

SeaChanger™ Prodigy works in concert with your white LED source by featuring 2 DMX modes: 4 channel “Legacy” CYMxG mode and a new 5 channel “Prodigy” CYMxG+Dim mode which activates dimming on the LED power outlet to your white LED source, while simultaneously adjusting the color temperature to provide tungsten-like dimming.

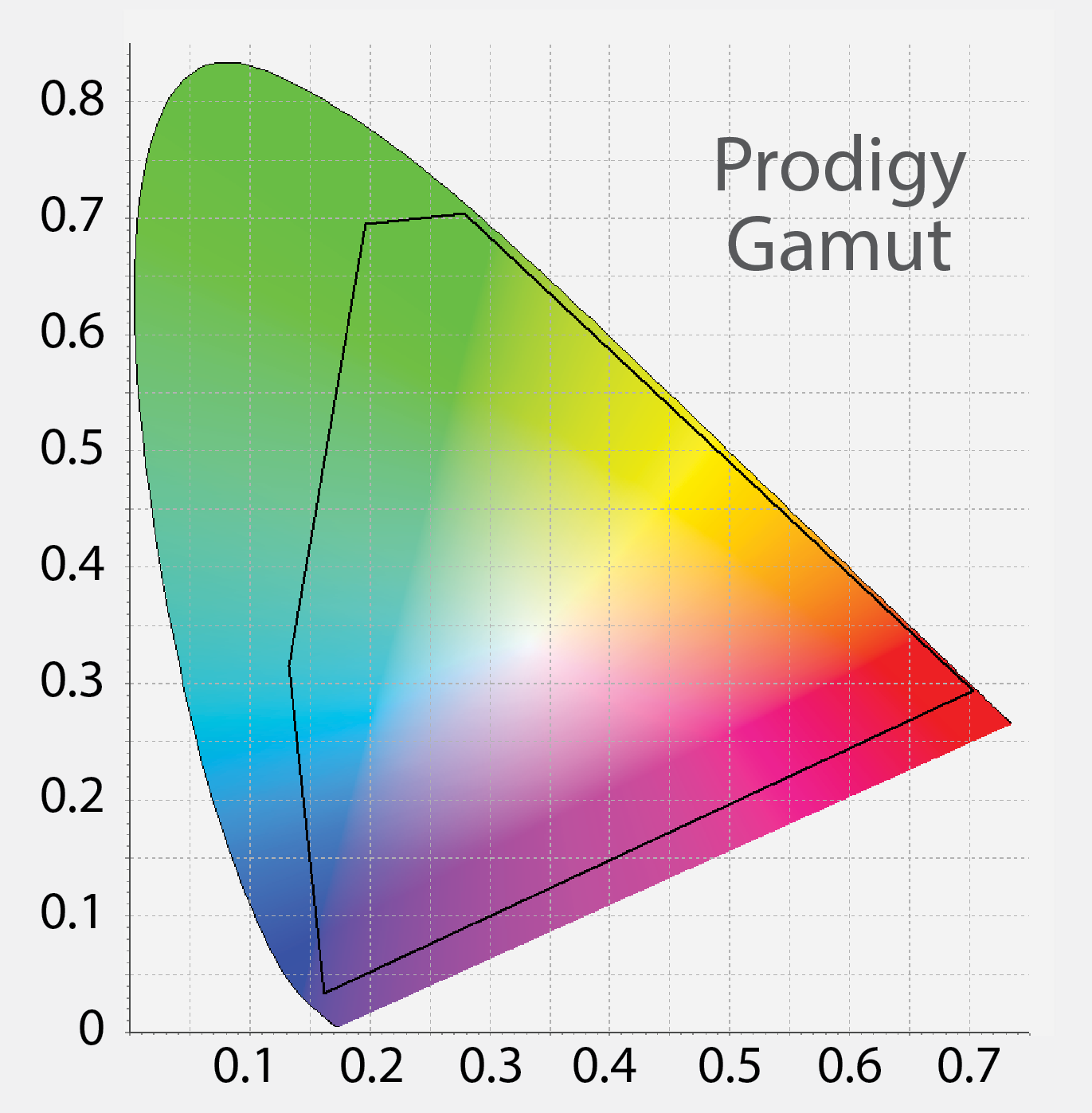

ProdigyGamut2

At the heart of every SeaChanger™ are the legendary dichroic color filters we produce using our unique, patented technology – providing you with an unprecedented source of consistent, intriguing blends of color. Imagine the possibilities of a remarkable palette of rich and vibrant colors. SeaChanger™ was built to offer you just that – flexibility, versatility and access to millions of mood setting colors. If you can imagine a color, you can create it and recreate it; from delicate pastels to deep, saturated primaries.
